8201 10μm Self-Stripping Double Coated Tape

Features

● Self-stripping design, easy to work.

● With the optical grade acrylic adhesive, it has excellent mechanical bond strength for a variety objects.

● The total thickness is only 0.01mm and the thermal resistance is very low.

● With the PET release film, it has no pollution during the cutting processes in cleaning rooms.

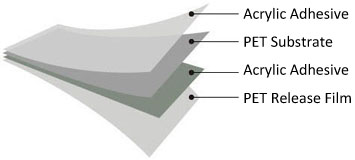

Structure


Adhesive

Total Thickness(mm)

Release Film(mm)

Width (mm)

Acrylic

0.01

0.075

Max 470




Applications

● Fixing of graphite, ferrite, absorbing material or nanocrystal with other materials.

● Bonding film and film.

● Bonding FPC with stiffener.

● Fixing of reflective sheets and optical waveguide films used in LCD backlight modules.


Properties

Test Items

Test Value

Test Method

Adhesion to Steel (g/25mm)

1000

JISZ0237 8

Holding Power (mm)

<0.2

JISZ0237 11

Initial Tack J.DOW (0~32#)

<3#

JISZ0237 12
