8210B 10μm Ultra-Thin Double Coated Tape (Black)

Features

● With the optical grade acrylic adhesive, it has excellent mechanical bond strength for a variety objects.

● Special black coating with light shield function.

● The total thickness is only 0.01mm. The thermal resistance is very low.

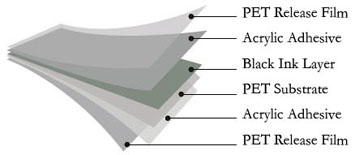

Structure


Adhesive

Total Thickness(mm)

Release Film(mm)

Width (mm)

Acrylic

0.01

0.025/0.036

Max 600




Applications

● Fixing of graphite, ferrite, absorbing material or nanocrystal with other materials.

● Fixing of reflective sheets and optical waveguide films used for LCD backlight modules.


Properties

Test Items

Value(Release Film)

Test Method

0.025mm

0.036mm

Adhesion to Steel (g/25mm)

900

 1000

JISZ0237 8

Holding Power(mm)

< 0.2

< 0.2

JISZ0237 11

Initial Tack J.DOW (0~32#)

1#

1#

 JISZ0237 12

Peel Strength of Release Film
(g/50mm)

 3

 5

23℃, 65% RH Environment, 50 mm Wide Release Film and Adhesive Layer to do T-type Peeling
