820BRCF 20μm Electrically Conductive Double-Sided Tape
Features
● Special conductive fabric base material; excellent XYZ conductive direction performance.

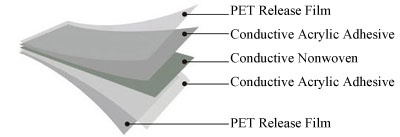

Structure
|
Adhesive |
Total Thickness(mm) |
Release Film(mm) |
Width (mm) |
|
Conductive Acrylic |
0.02 |
0.075/0.075 |
Max 650 |
Applications
● FPC grounding.
Properties
|
Test Items |
Test Value |
Test Method |
|
Adhesion to Steel (g/25mm) |
800 |
JISZ0237 8 |
|
Initial Tack J.DOW (0~32#) |
<5# |
JISZ0237 12 |
|
Surface Resistance (Ω) |
<0.3 |
Resistance Tester |
|
Z-axis Resistance (Ω) |
<0.1 |
Resistance Tester |
|
EMI Shielding(dB) |
65 |
ASTM D4935 |
