Features

● With the optical grade acrylic adhesive, it has excellent mechanical bond strength for a variety objects.

● The surface is matte white and the appearance is consistent. It has the effect of light shielding and decoration.

● The total thickness is only 0.03mm and the thermal resistance is very low.

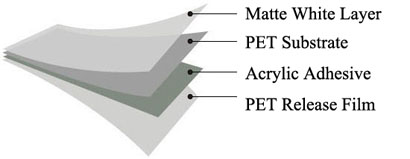

Structure

●  Strength the surface combination of graphite、ferrite、absorbing material or nanocrystal.

●  Surface protection and insulation for electronical devices or metal parts.

Applications

Adhesive	Total Thickness(mm)	Release Film(mm)	Width (mm)
Acrylic	0.03	0.025	Max 500

Properties

Test Items	Test Value		Test Method
Adhesion to Steel (g/25mm)	600		JISZ0237 8
Initial Tack J.DOW (0~32#)	<3#		JISZ0237 12
Glossiness(GU)	2.3~3.1		Gloss Meter
Chromatic Aberration	L	96	Spectrophotometer  (Konica 2600D)
	a	-0.1~0.3
	b	-2.6~1.9
