CNT EMI Shielding and Heat Dissipation Film

Features

● A new 2 in 1 shielding film for shielding and heat dissipation.

● Copper foil as base material, it has excellent EMI shielding and heat dissipation effects.

● Matte black surface treatment, the apparent consistency is good, can achieve the perfect decorative effect.

● The surface is coated with carbon nanotubes to form radiation and convection heat dissipation effects.

● Excellent bending resistance, can be reused and easy to repair.

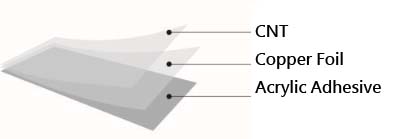

Structure

● For LCD /OLED EMI shielding and heat dissipation.

● For electronic equipment or instruments EMI shielding.

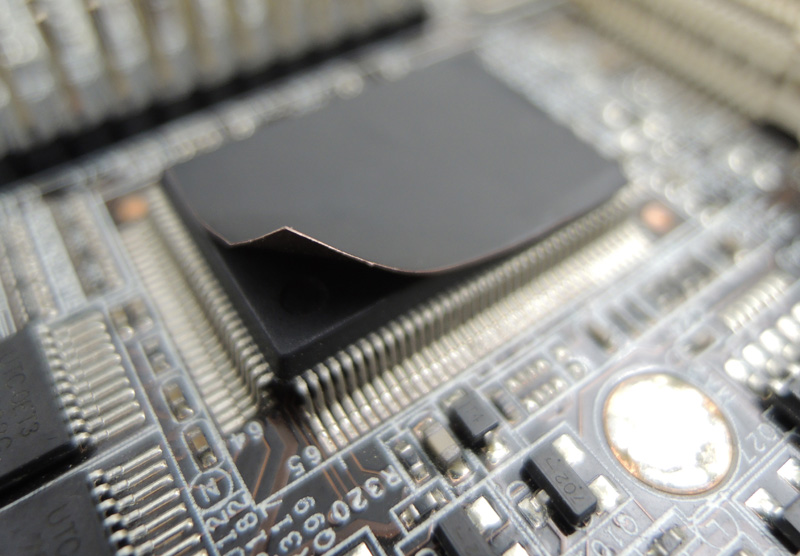

Applications


Adhesive

Total Thickness(mm)

Release Film(mm)

Width (mm)

Acrylic

0.05

0.075

Max 600


Properties

Test Items

Test Value

Test Method

Adhesion to Steel (g/25mm)

1000

JISZ0237 8

Initial Tack J.DOW (0~32#)

<3#

JISZ0237 12

Thermal Conductive
(W/mk)

CNT

1200~2500



Copper Foil

250~350

Thermal Radiation

0.95



Shielding Effectiveness (dB)

90

KEC (10~3000MHz)

Glossiness(GU)

1±0.5

Gloss Meter

Chromatic Aberration

L

22.5±2.5

Spectrophotometer
(Konica 2600D)

a

-1~1

b

-2~0

Alcohol Resistance Test

>80 Cycles
